Outdoor Fiber Optic Cable
GYFTY Outdoor Fiber Optic Cable
GYFTY outdoor fiber optic cable is suitable for non-metallic outdoor fiber network routes and telecom distribution projects.
Product Information
Key Features & Specifications
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Fiber Count | 2 to 288 cores, higher fiber count can be confirmed by project |
|---|---|
| Span | Aerial or duct route, span depends on cable structure and installation method |
| Jacket | Black PE / HDPE outdoor sheath, UV-resistant |
| Core Type | G.652D single mode; G.657A1 / G.655 optional |

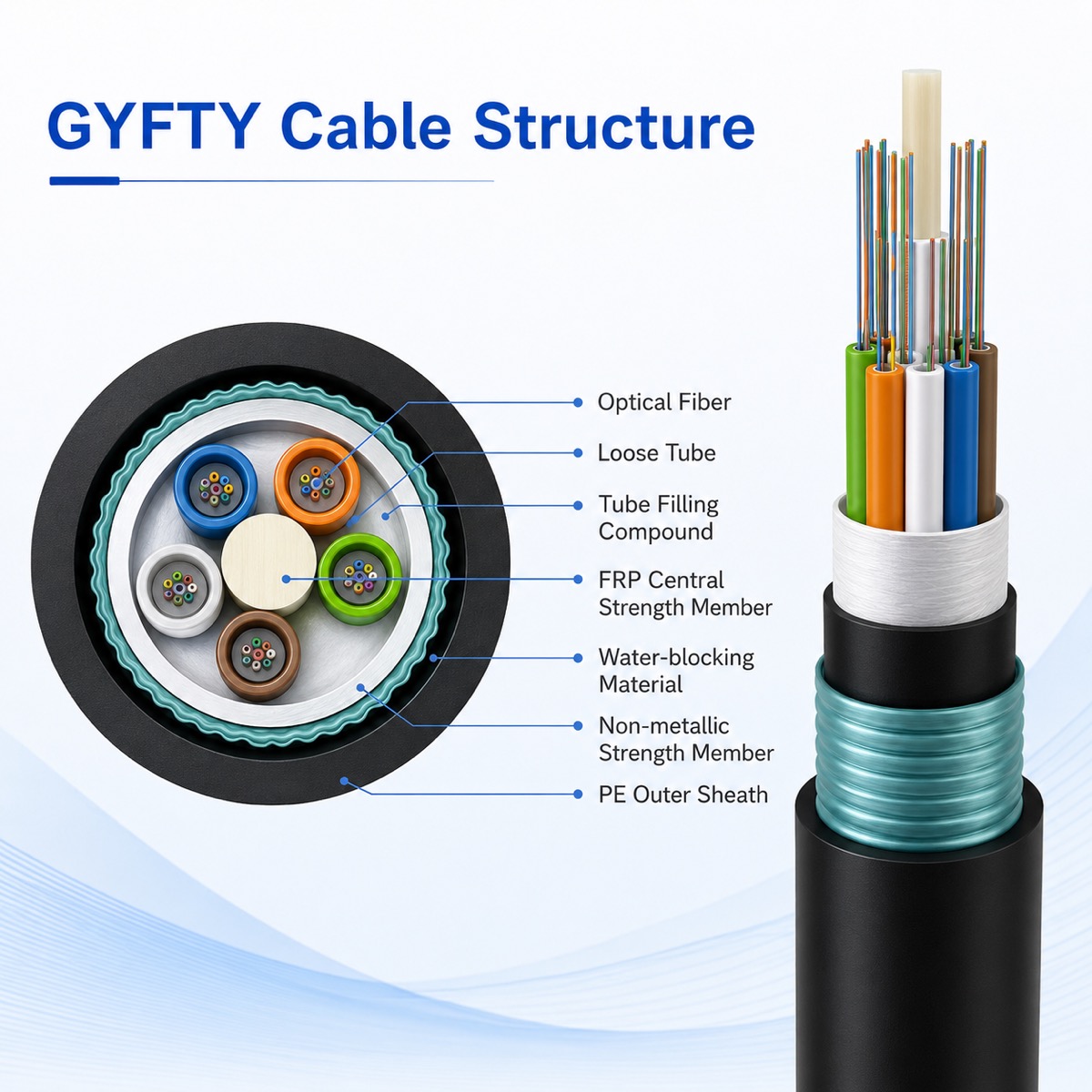

| Structure | Central tube or stranded loose tube according to model |
| Standard | IEC 60794 / ITU-T G.652 / project telecom standard |
| Packing | Wooden drum or plywood drum, common length 2 km to 4 km per drum |
| Application | Outdoor backbone, duct, aerial and distribution network |
| Operating Temperature | -40°C to +70°C |
| Testing | OTDR / attenuation, continuity and drum inspection before shipment |
| Printing | Cable jacket marking, meter marking and drum label can be customized |
| Lead Time | Usually 10 to 25 days depending on fiber count and order quantity |
Applications
UKCC Project Selection
Confirm the route before fixing the cable construction
UKCC treats the model name as a starting point. The quotation should record the real route, mechanical exposure, compatible accessories and drum or coil allocation before production is released.
- Duct, aerial or protected route
- Moisture barrier and pulling length
- Drum schedule and splice locations
Buyer & Contractor Guide
GYXTW, GYTS or GYTA? A Route-Based Comparison for Duct and Aerial Networks
Compare central-tube and stranded outdoor cable by route, fibre count, water blocking, metallic protection, pulling conditions and drum design.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GYFTY Outdoor Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can UKCC customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. UKCC can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
