OPGW Fiber Optic Cable
Stranded OPGW Fiber Optic Cable
Stranded OPGW is used for power line optical communication and grounding in transmission infrastructure.
Product Information
Key Features & Specifications
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support

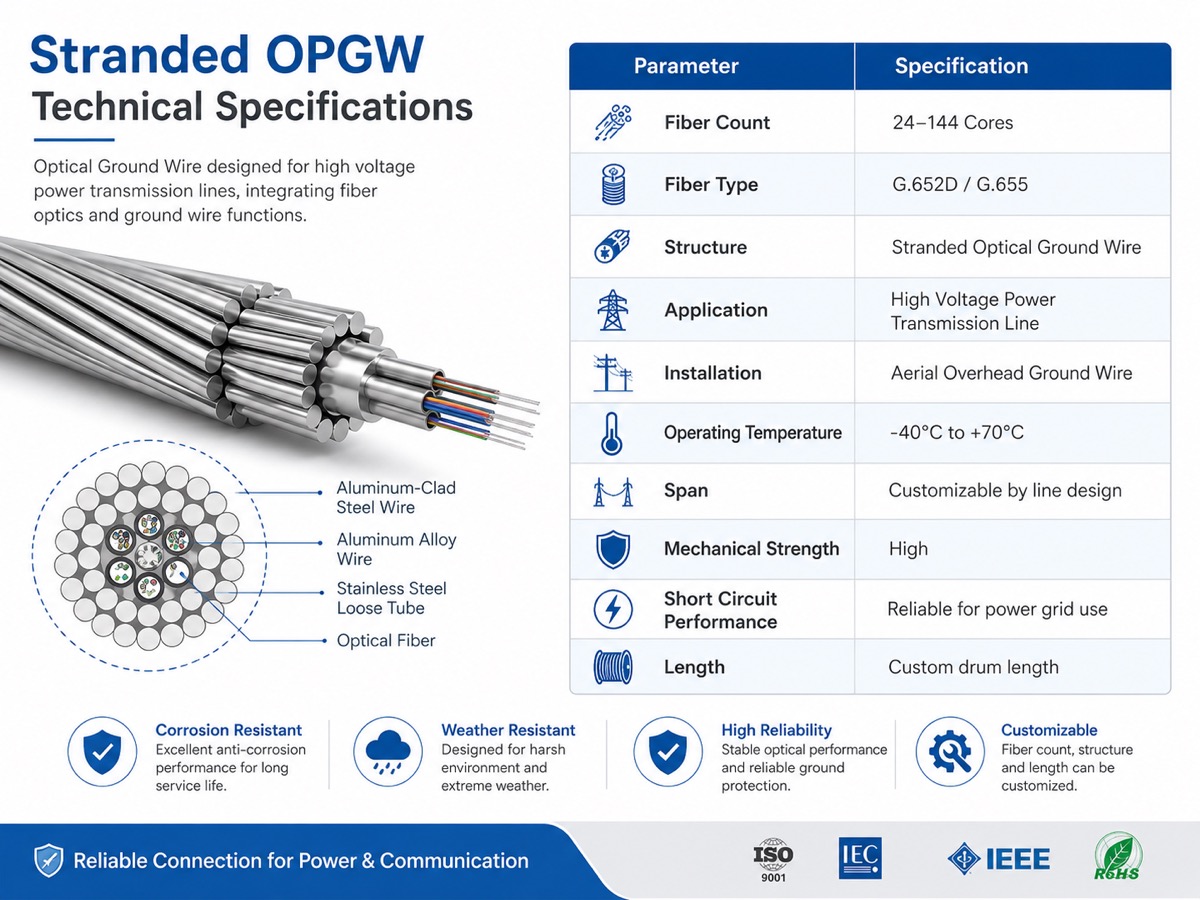

Technical Specifications
| Fiber Count | 12 to 144 cores commonly supplied, confirmed by power line design |
|---|---|
| Span | Power transmission line span, project dependent |
| Jacket | No plastic jacket; stainless steel tube with aluminum-clad steel / aluminum alloy wires |
| Core Type | G.652D / G.655 / G.657A1 optional |

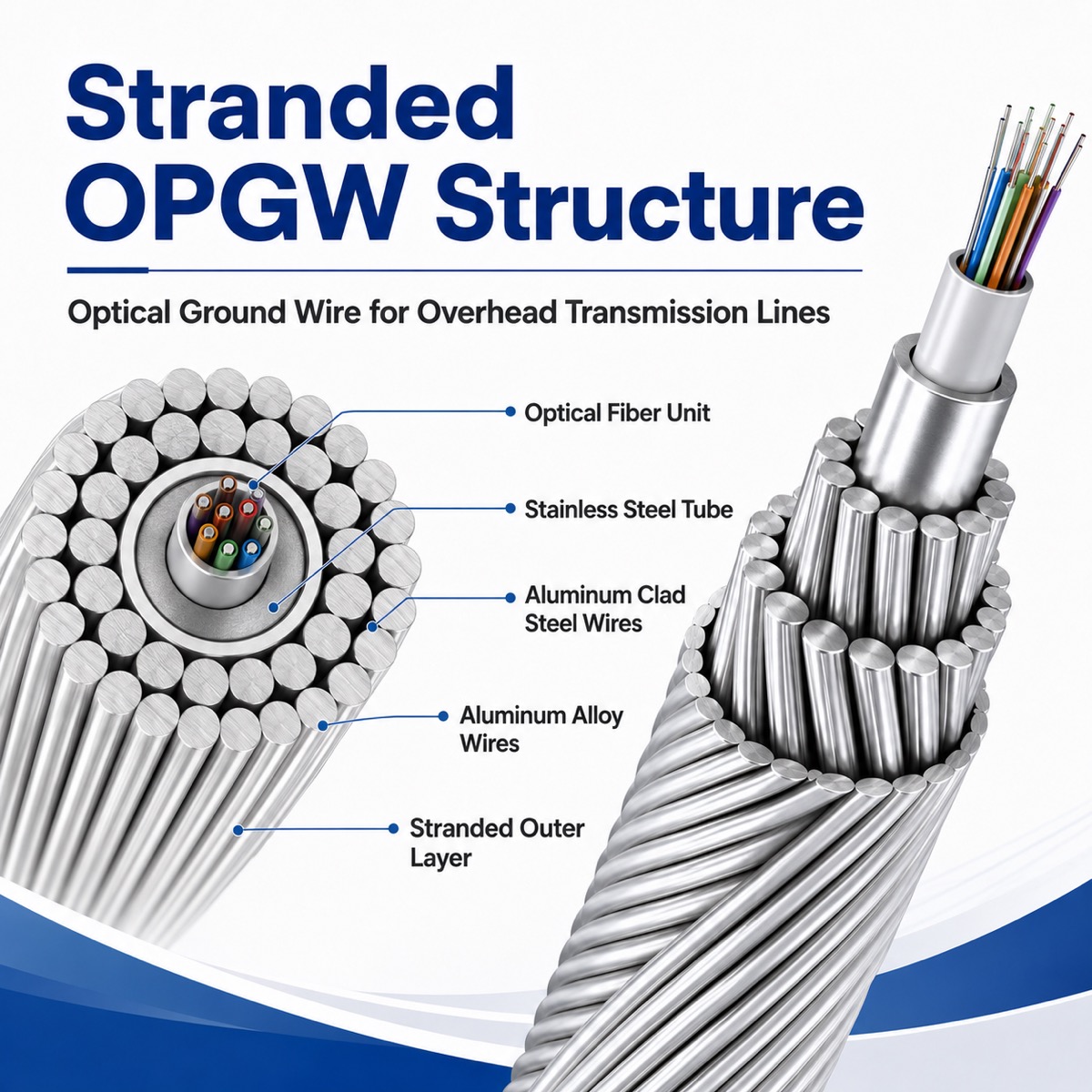

| Structure | Unitube or stranded optical ground wire |
| Standard | IEEE 1138 / IEC 60794-4 / IEC 61232 reference |
| Packing | Steel or wooden drum for power project delivery |
| Application | Power transmission communication, grounding and overhead optical network |
| Operating Temperature | -40°C to +80°C |
| Testing | Optical test and project inspection items confirmed by power line requirement |
| Printing | Drum marking and project label can be customized |
| Lead Time | Confirmed according to OPGW design, conductor data and quantity |
Applications
UKCC Project Selection
Confirm the route before fixing the cable construction
UKCC treats the model name as a starting point. The quotation should record the real route, mechanical exposure, compatible accessories and drum or coil allocation before production is released.
- Line voltage and fault-current data
- Structure loading and sag-tension input
- Hardware, joints and engineering approval
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote Stranded OPGW?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can UKCC customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. UKCC can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
