ADSS Fiber Optic Cable
ADSS Aerial Fiber Cable
ADSS aerial fiber cable is designed for outdoor self-supporting installation on poles, helping telecom contractors build reliable overhead fiber routes without metallic strength members.
Product Information
Key Features & Specifications
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Fiber Count | 2 to 288 cores, common options 12 / 24 / 48 / 96 / 144 cores |
|---|---|
| Span | 50 m to 1,000 m, confirmed by route, wind and ice load |
| Jacket | Black PE / HDPE; anti-tracking sheath available for power line environments |
| Core Type | Single mode G.652D / G.657A1 / G.655 optional |

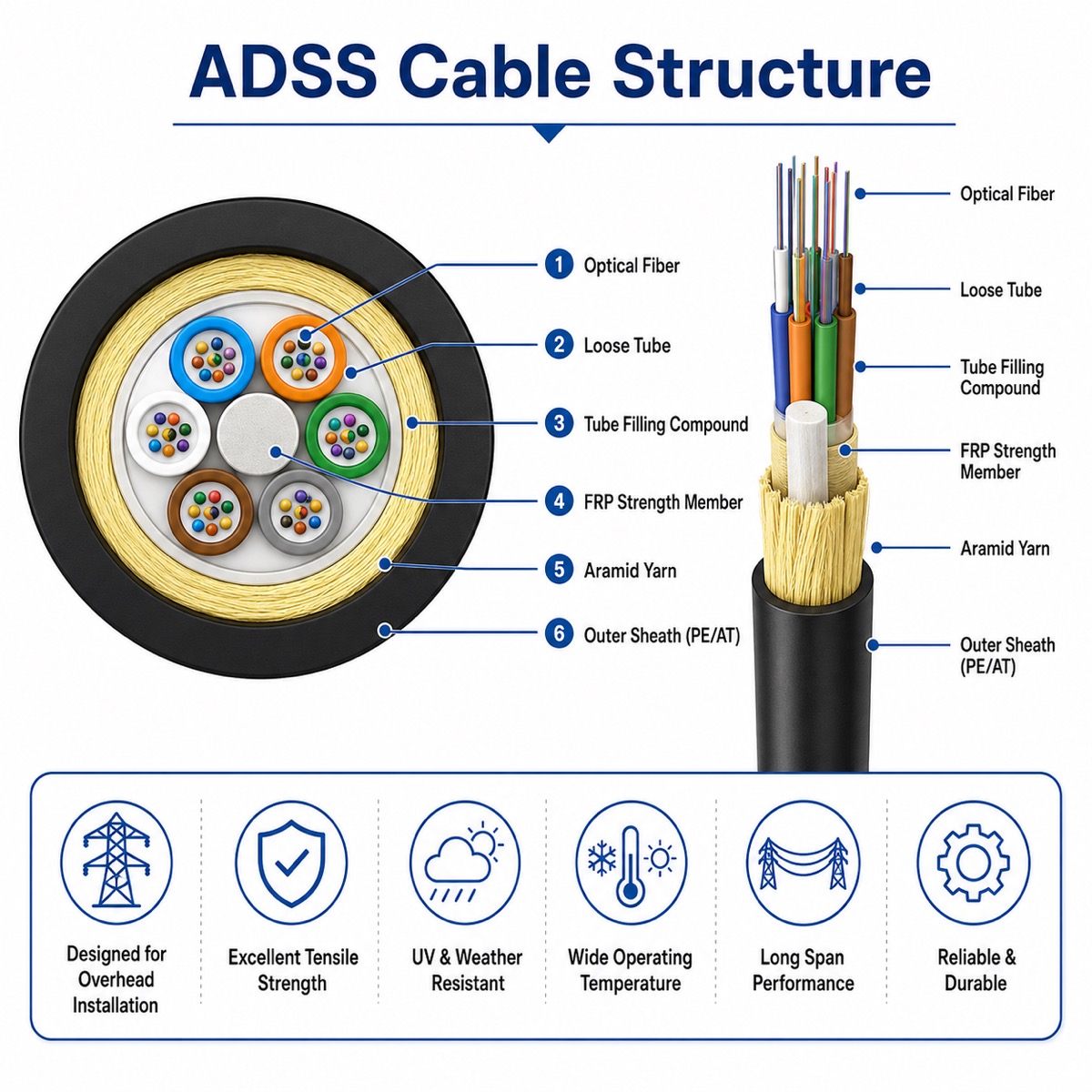

| Strength Member | Aramid yarn, all-dielectric self-supporting structure |
| Standard | IEC 60794 series / ITU-T fiber standards; project standard can be confirmed |
| Packing | Wooden drum or plywood drum, drum length confirmed by order |
| Application | Aerial telecom routes, FTTH access, ISP backbone and rural broadband |
| Operating Temperature | -40°C to +70°C |
| Testing | Optical attenuation, continuity and drum inspection before shipment |
| Printing | Cable jacket marking and drum label can be customized |
| Lead Time | Usually 7 to 20 days depending on fiber count, span design and quantity |
Applications
Telecom network projectsFTTH access networksISP and contractor supplyDistribution and installation projects
UKCC / Xinguang order control
ADSS Aerial Cable: OEM Specification and Batch Release
For this priority model, UKCC turns the buyer's route and marking requirements into an approved Xinguang production file before the batch is released.
OEM and batch control
Freeze the approved drawing, fibre and material BOM, colour code, jacket print sample, tolerance and drum label before production. The order reference follows the batch through manufacturing and packing.Release evidence
Agree the inspection list before production. The shipment file can include dimensional checks, optical or OTDR records, printing and drum photos, packing list and third-party inspection evidence.UKCC Project Selection
Confirm the route before fixing the cable construction
UKCC treats the model name as a starting point. The quotation should record the real route, mechanical exposure, compatible accessories and drum or coil allocation before production is released.
- Span schedule
- Wind, ice and electrical exposure
- Matched suspension and dead-end fittings
Buyer & Contractor Guide
ADSS Span Selection: What to Check Beyond Rated Tensile Strength
A route-first ADSS span selection guide covering pole geometry, wind, ice, temperature, sag, electrical environment, cable tension definitions and compatible fittings.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote ADSS Aerial Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can UKCC customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. UKCC can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
