Outdoor Fiber Optic Cable
GYTC8S53 Armored Figure 8 Fiber Optic Cable

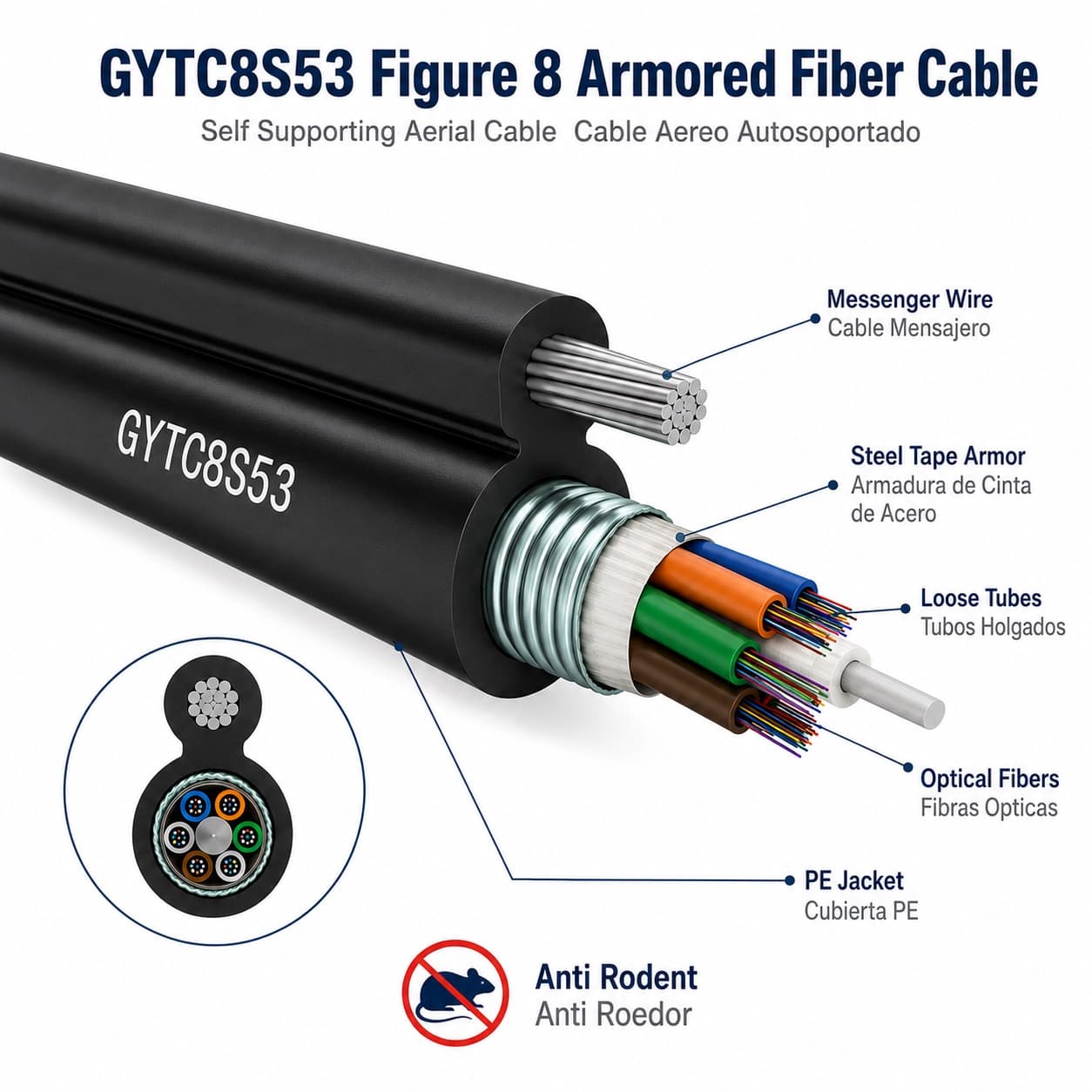

GYTC8S53 combines a figure 8 steel messenger with stranded loose tubes and corrugated steel tape armor for protected outdoor aerial telecom routes.
Product Information
Key Features & Specifications
Main Features
- Self-supporting figure 8 construction
- Stranded loose tube cable core
- Corrugated steel tape armor

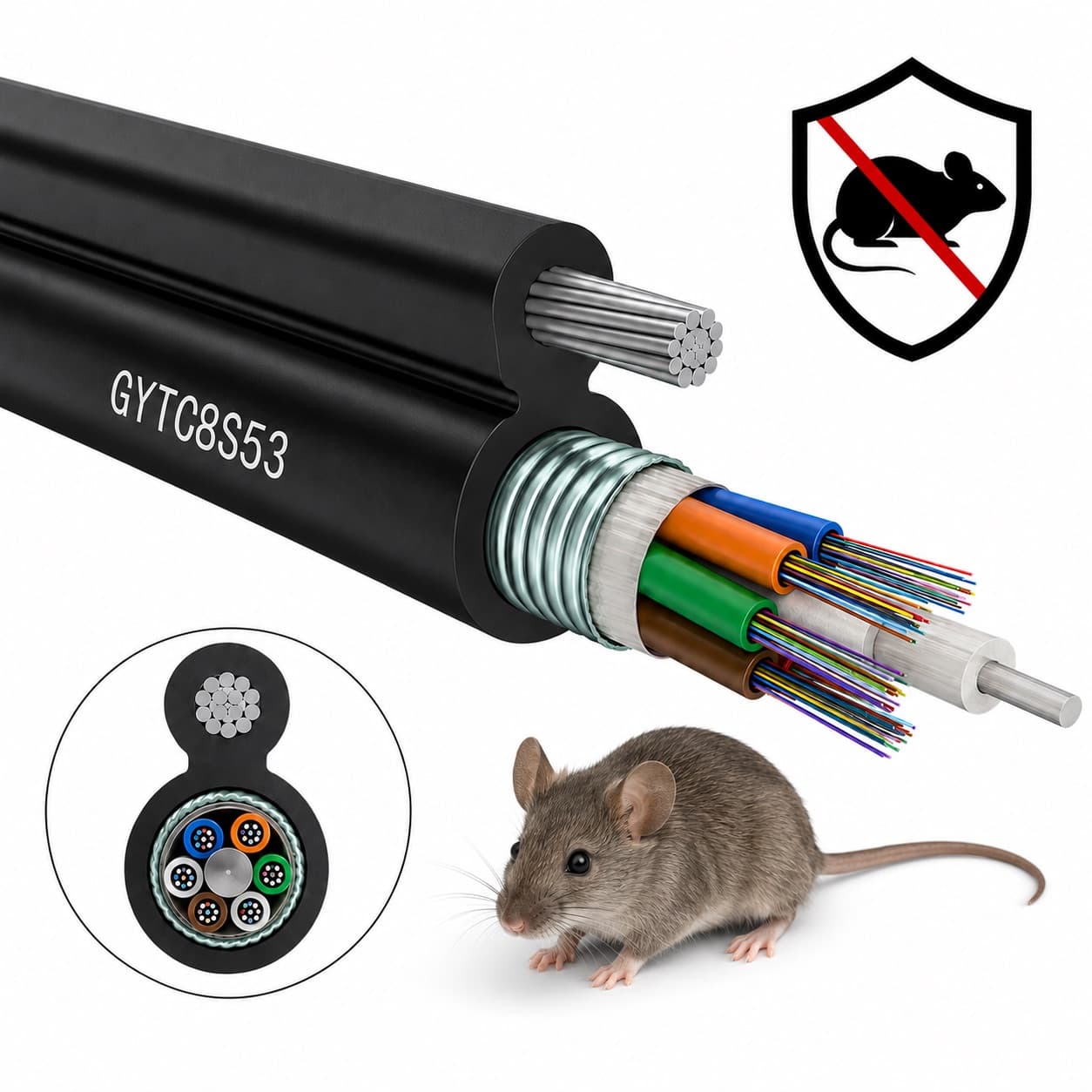

- Added mechanical and rodent protection
- PE sheath for outdoor exposure
Technical Specifications
| Fiber Count | 12 to 144 fibers, customized |
|---|---|
| Span | Aerial or duct route, span depends on cable structure and installation method |
| Jacket | Black PE / HDPE outdoor sheath, UV-resistant |
| Core Type | G.652D single mode; G.657A1 / G.655 optional |
| Structure | Stranded loose tubes with figure 8 messenger |
| Standard | IEC 60794 / ITU-T G.652 / project telecom standard |
| Packing | Wooden drum or plywood drum, common length 2 km to 4 km per drum |
| Application | Outdoor backbone, duct, aerial and distribution network |
| Operating Temperature | -40°C to +70°C |
| Testing | Optical, tensile and sheath inspection |
| Printing | Cable jacket marking, meter marking and drum label can be customized |
| Lead Time | Usually 10 to 25 days depending on fiber count and order quantity |
| Fiber Type | G.652D or G.657A1 |
| Armor | Corrugated steel tape |
| Outer Sheath | Black PE |
| Installation | Self-supporting aerial route |
Applications
UKCC Project Selection
Confirm the route before fixing the cable construction
UKCC treats the model name as a starting point. The quotation should record the real route, mechanical exposure, compatible accessories and drum or coil allocation before production is released.
- Duct, aerial or protected route
- Moisture barrier and pulling length
- Drum schedule and splice locations
Buyer & Contractor Guide
GYXTW, GYTS or GYTA? A Route-Based Comparison for Duct and Aerial Networks
Compare central-tube and stranded outdoor cable by route, fibre count, water blocking, metallic protection, pulling conditions and drum design.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GYTC8S53 Figure 8 Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can UKCC customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?

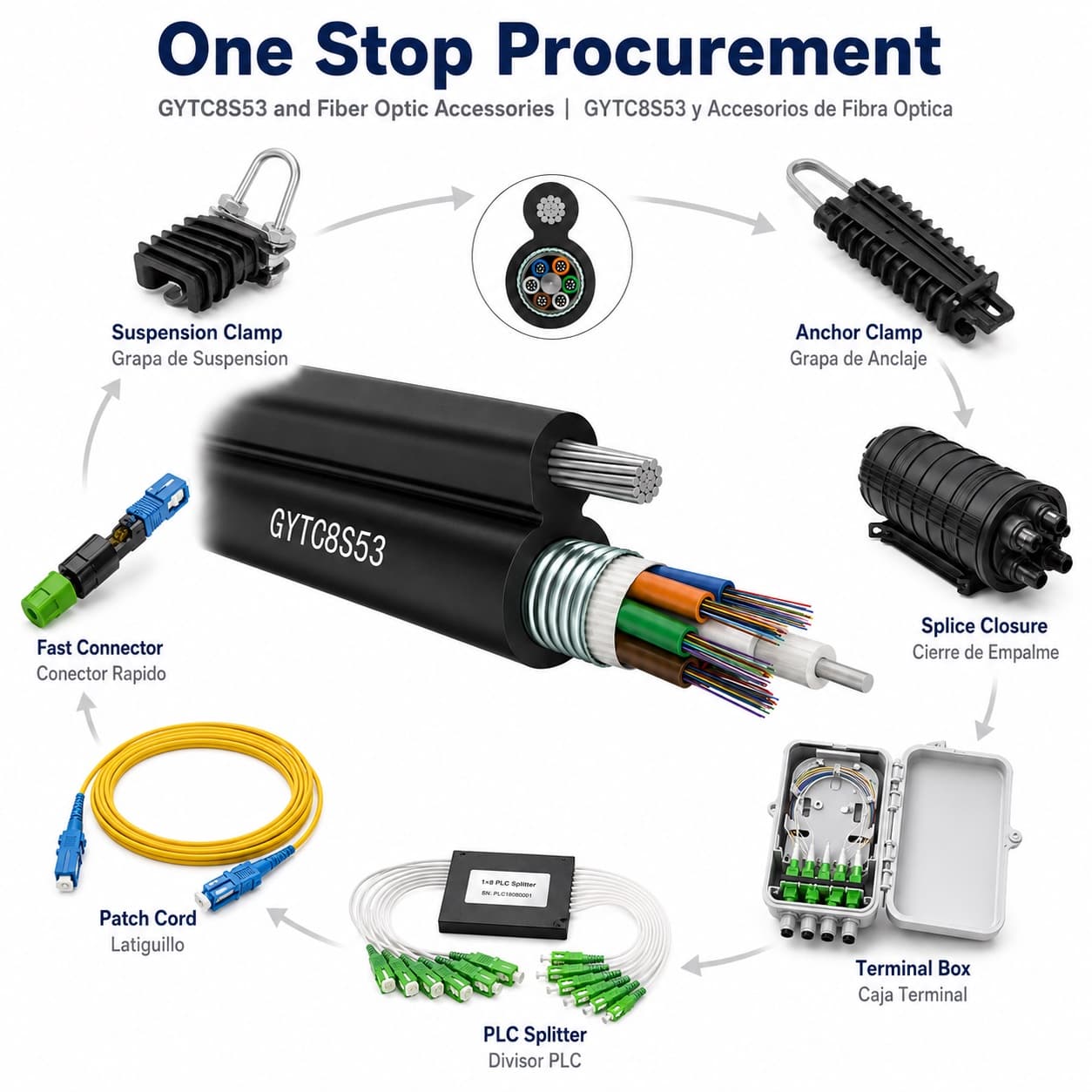

Yes. UKCC can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
