Underground & Armored Fiber Cable

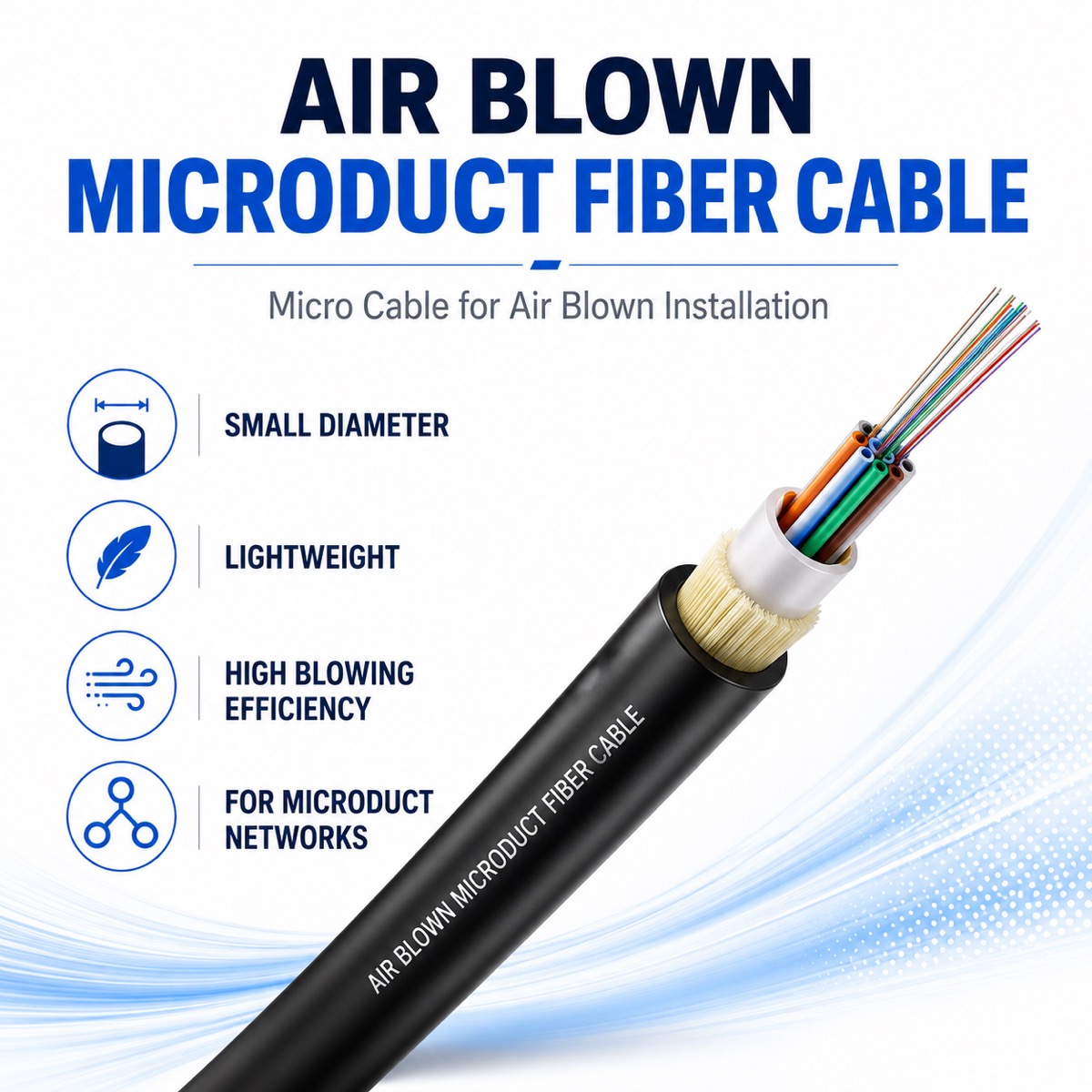

Microduct Fiber Cable (Air Blown)

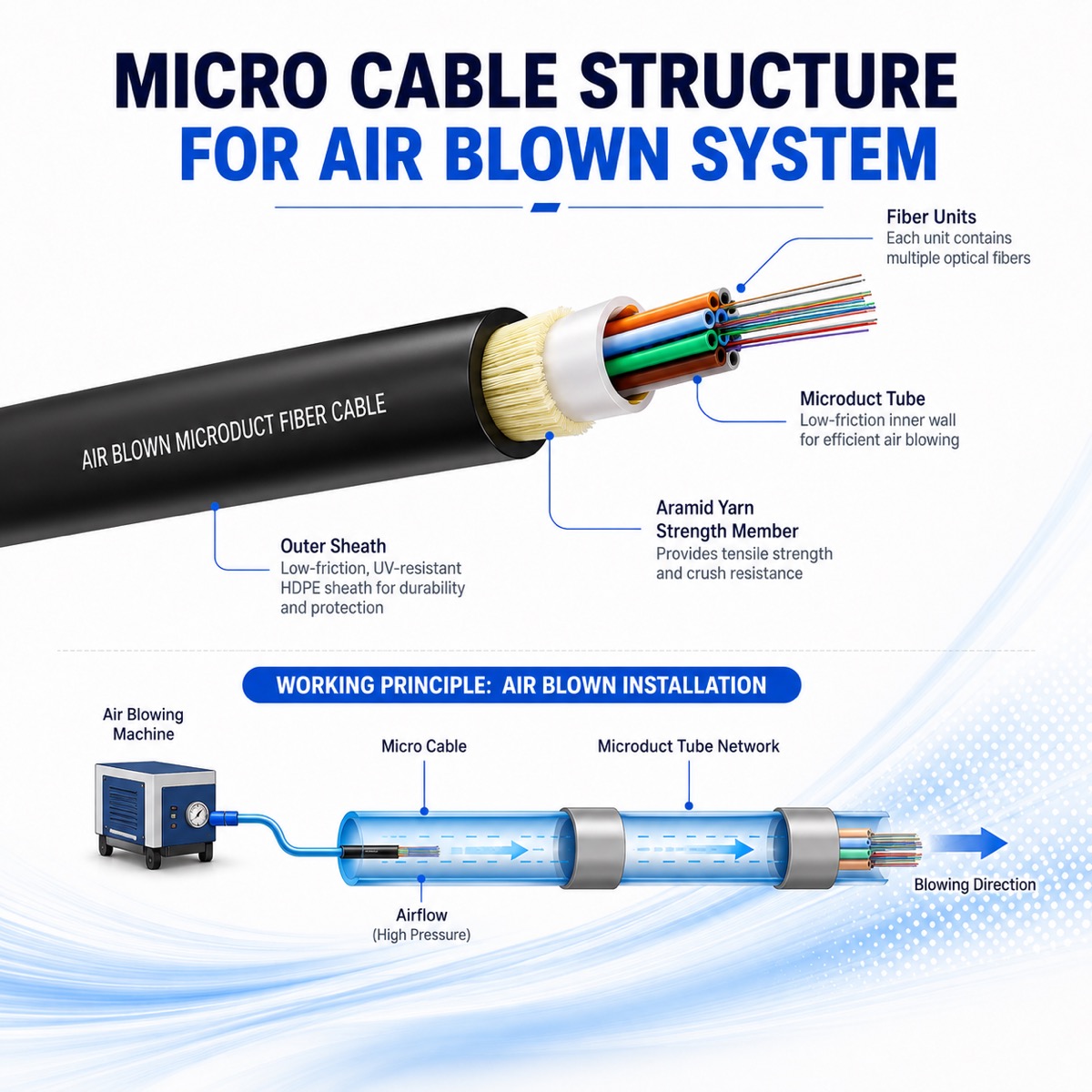

Air blown microduct fiber cable is designed for microduct network construction and flexible capacity expansion.
Product Information
Key Features & Specifications
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Fiber Count | 2 to 144 cores commonly supplied |
|---|---|
| Span | Microduct blowing distance depends on duct size, route and air-blowing equipment |
| Jacket | HDPE low-friction sheath for microduct installation |
| Core Type | G.652D / G.657A1 optional |
| Structure | Lightweight air-blown micro cable |
| Standard | IEC 60794 reference; microduct project standard can be confirmed |
| Packing | Plywood drum or reel, length confirmed by project |
| Application | Microduct network, air-blown installation and capacity expansion |
| Operating Temperature | -40°C to +70°C |
| Testing | Optical attenuation, cable diameter and visual inspection before shipment |
| Printing | Cable marking and drum label can be customized |
| Lead Time | Usually 10 to 20 days depending on fiber count and quantity |
Applications
UKCC Project Selection
Confirm the route before fixing the cable construction
UKCC treats the model name as a starting point. The quotation should record the real route, mechanical exposure, compatible accessories and drum or coil allocation before production is released.
- Application and installation method
- Approved construction and tolerances
- Packing, marking and destination
Buyer & Contractor Guide
Armored Fiber Cable for Duct or Direct Burial: What GYTA53, GYTS53 and GYTY53 Actually Change
A procurement guide to double-sheath armored outdoor cable, covering soil, water, rodents, pulling load, construction details and acceptance data.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote Air Blown Microduct Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can UKCC customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. UKCC can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
