Underground & Armored Fiber Cable

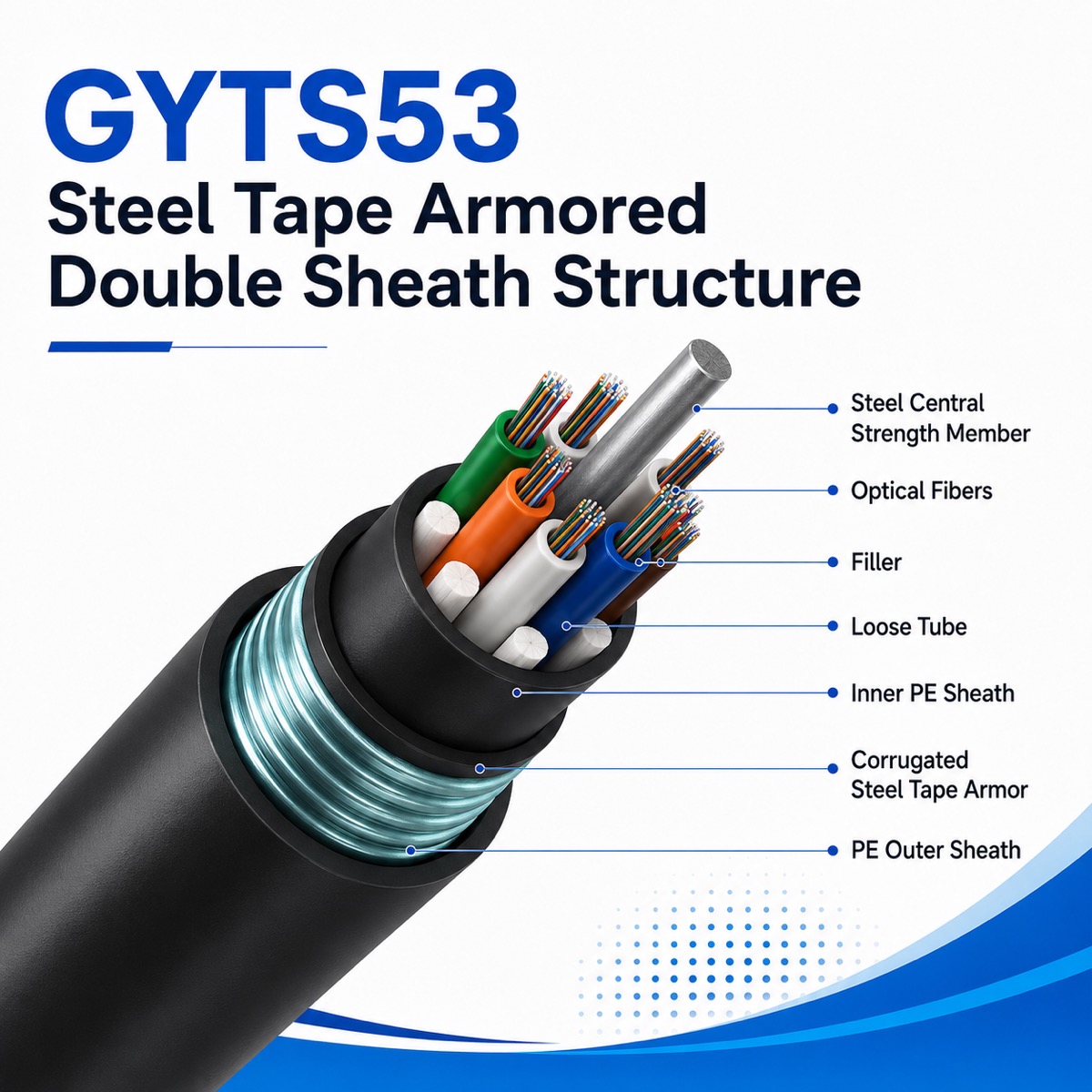

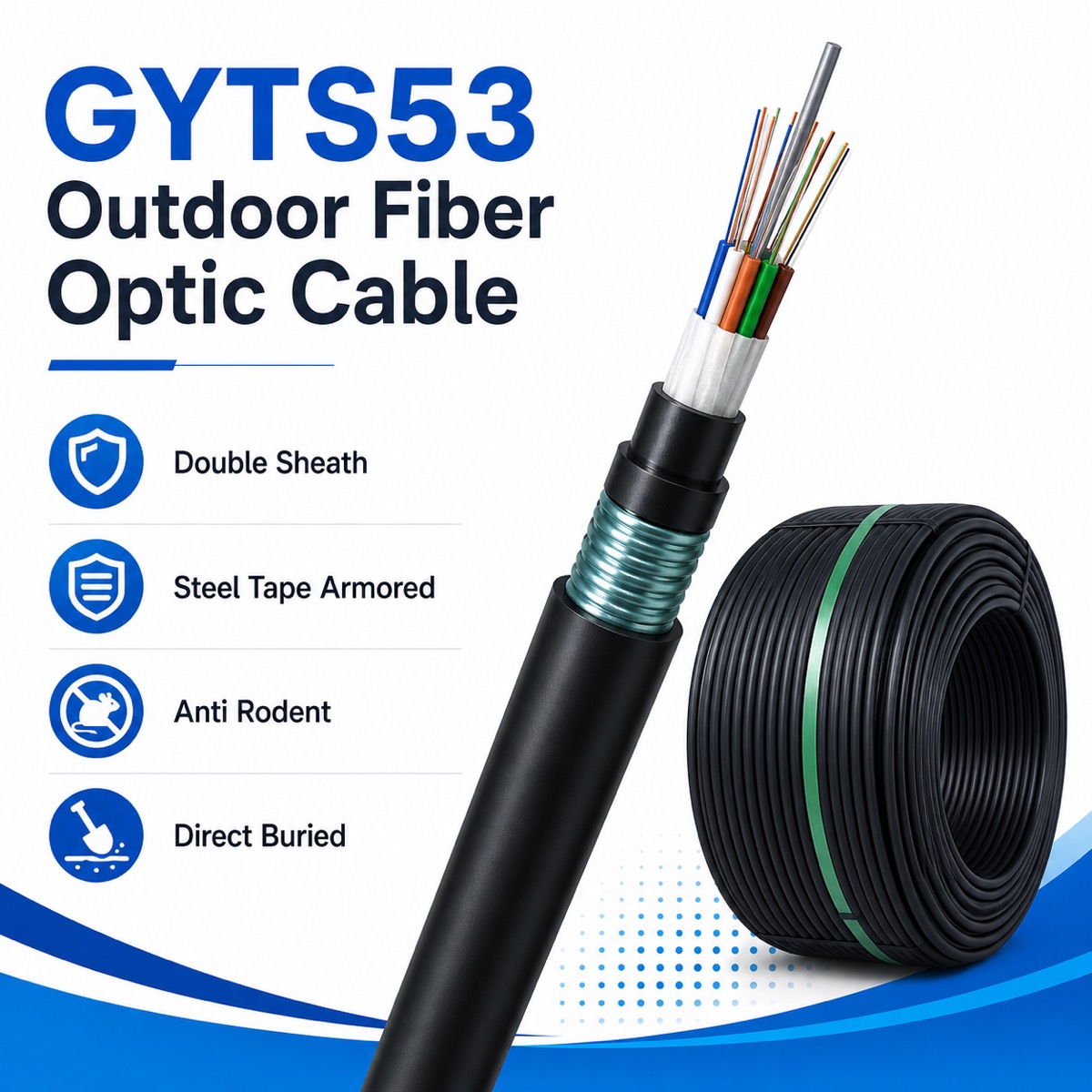

GYTS53 Armored Anti-Rodent Cable
GYTS53 armored cable is supplied for underground routes where mechanical protection and anti-rodent performance are required.
Product Information
Key Features & Specifications
Main Features
- Factory supply for telecom and FTTH projects
- Custom specifications available according to order requirements
- Matched with related installation materials when needed
- Export packing and product marking support
Technical Specifications
| Fiber Count | 2 to 288 cores, common options 24 / 48 / 96 / 144 cores |
|---|---|
| Span | Duct or direct buried route; not designed as long-span self-supporting cable |
| Jacket | Black PE / HDPE outer sheath |
| Core Type | G.652D single mode; G.657A1 / G.655 optional |
| Armoring | Corrugated steel tape / aluminum tape / double sheath according to model |
| Standard | IEC 60794 / ITU-T fiber standards; project standard can be confirmed |
| Packing | Wooden drum or plywood drum, export packing available |
| Application | Underground duct, direct burial, anti-rodent and protected outdoor routes |
| Operating Temperature | -40°C to +70°C |
| Testing | OTDR / attenuation, continuity, sheath and drum inspection before shipment |
| Printing | Cable jacket marking, meter marking and drum label can be customized |
| Lead Time | Usually 10 to 25 days depending on fiber count, armor structure and quantity |
Applications
UKCC Project Selection
Confirm the route before fixing the cable construction
UKCC treats the model name as a starting point. The quotation should record the real route, mechanical exposure, compatible accessories and drum or coil allocation before production is released.
- Application and installation method
- Approved construction and tolerances
- Packing, marking and destination
Buyer & Contractor Guide
Armored Fiber Cable for Duct or Direct Burial: What GYTA53, GYTS53 and GYTY53 Actually Change
A procurement guide to double-sheath armored outdoor cable, covering soil, water, rodents, pulling load, construction details and acceptance data.
Download & Inquiry
Prepare Your Product Inquiry
Download the PDF catalog or use the online catalog to compare related models, then send your required fiber count, quantity and installation route.
Product FAQ
Common Buyer Questions
What information is needed to quote GYTS53 Armored Cable?
Please send the model, fiber count, fiber type, quantity, installation method, packing requirement and destination port or country.
Can UKCC customize the cable specification?
Yes. Fiber count, sheath material, cable color, printing, packing and related accessories can be confirmed according to project requirements.
Can this product be supplied with matching accessories?
Yes. UKCC can help match closures, terminal boxes, splitters, connectors, clamps and other FTTH installation materials when needed.
How is quality checked before shipment?
Products can be checked through production inspection and optical testing before packing. Final inspection items are confirmed according to the order.
